Organic Fertilizer Rotary Drum Dryer Machine
Capacity : (T/H): 1-2
materials particle size:(mm): 0.3-0.5
Power: KW: 30
Model: RDD-2
Detail

Organic Fertilizer Rotary Drum Dryer Machine

Rotay Drum Dryer (92)11.jpg

Rotary Drum Dryer

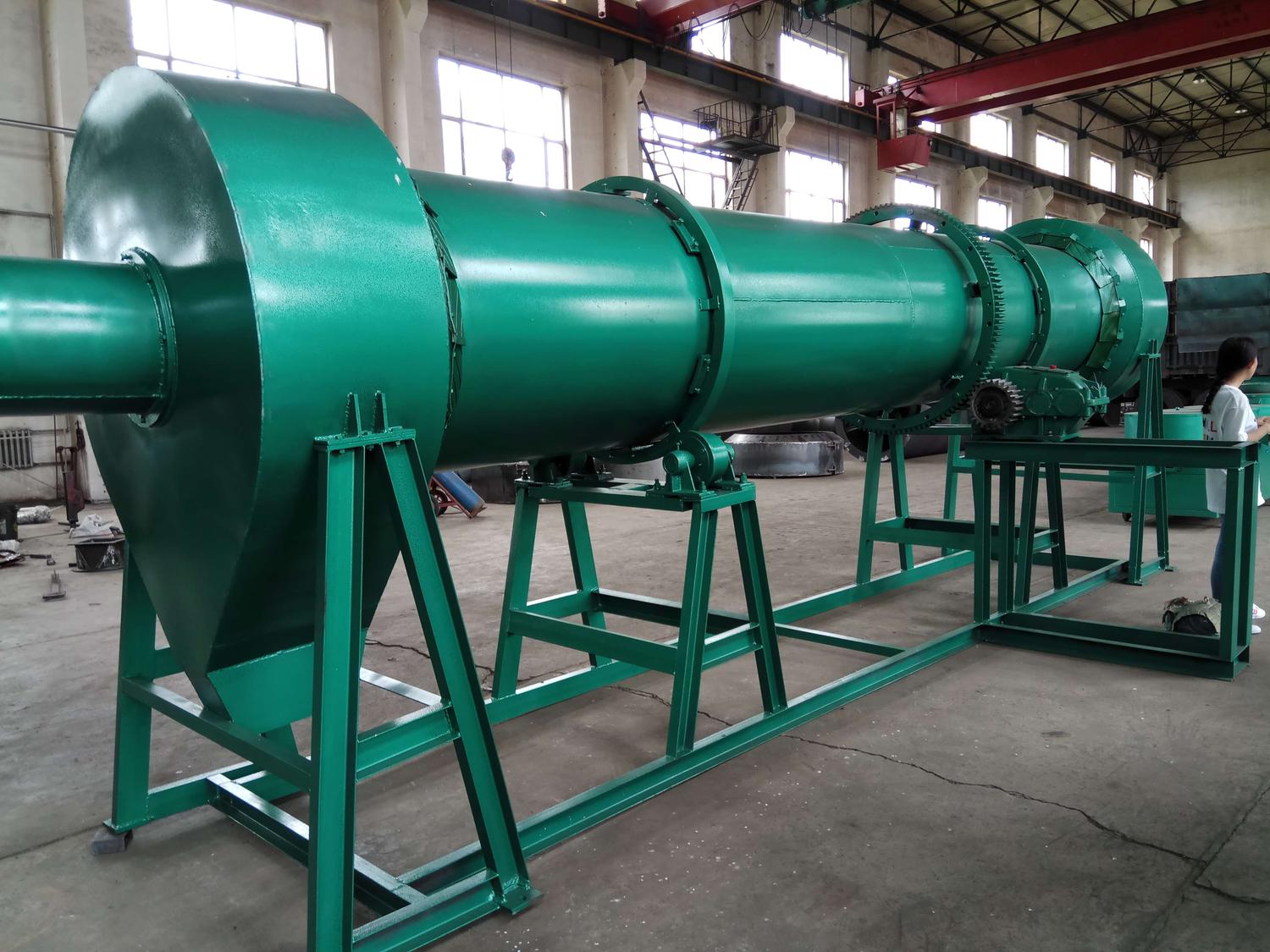

Rotary Drum Dryer adopts slightly tilted drum which can be rotated. The wet materials are sent to hopper of rotary drum by belt conveyor or bucket elevator from the higher side. Well-dried materials are collected from the other lower side, and then hot air enters the drum from the feeding side to the discharging side.

Burning the coal / gas /oil in the Combustion Chamber (Boiler) , with making the dry hot wind . The dry hot wind goes though the chamber of rotary drum dryer under the action of induced fan . The combustion chamber (boiler) will need to built by buyer .


Organic Fertilizer Rotary Drum Dryer

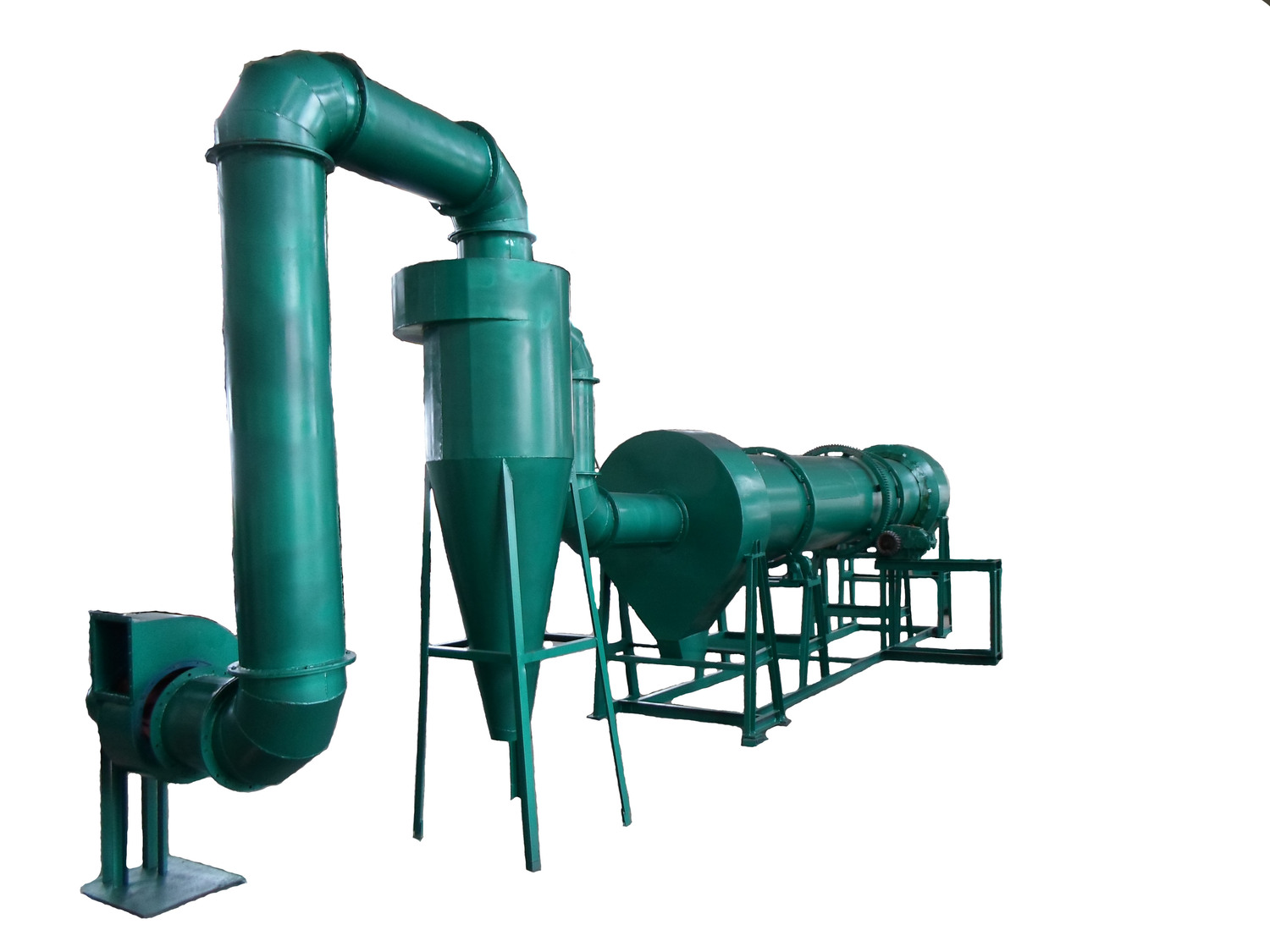

Boiler supply hot air , and then hot sir enters the drum from the feeding side .The wet powder / granules are sent to hopper of rotary drum by belt conveyor from the higher side. Lifting impeller towards the wet powder/ granules into the discharge side . The powder/ granules heat exchange with hot wind when powder/ granules moving towards , with water vapor into cyclone dust catcher effected by induced fan . Welldried granules are collected from the other lower side.

Organic Fertilizer Rotary Drum Dryer
