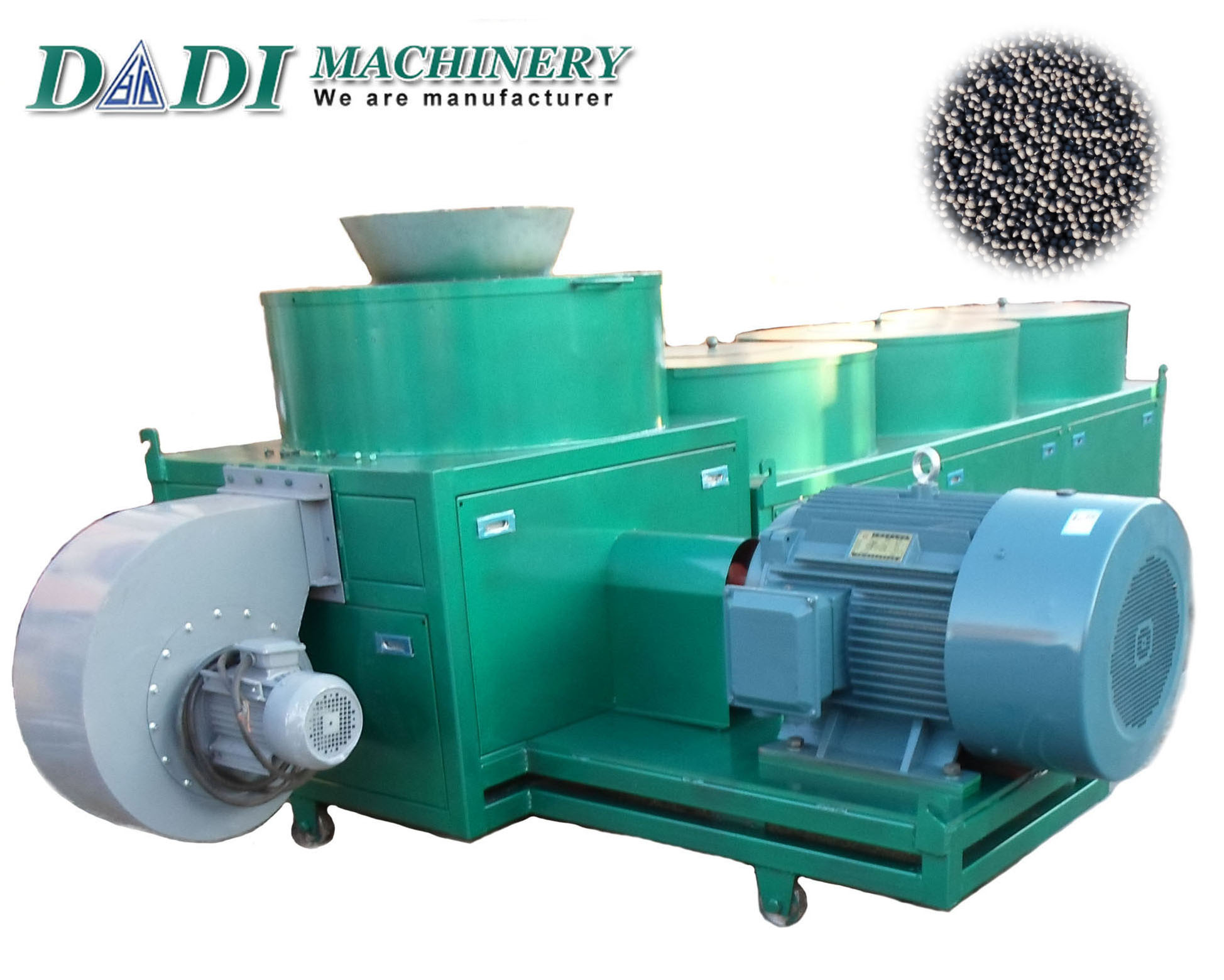

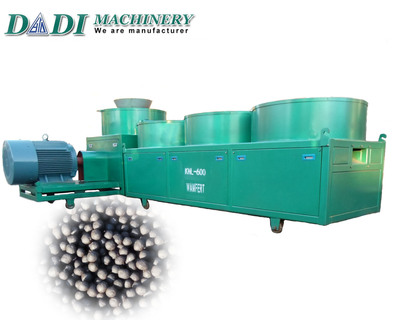

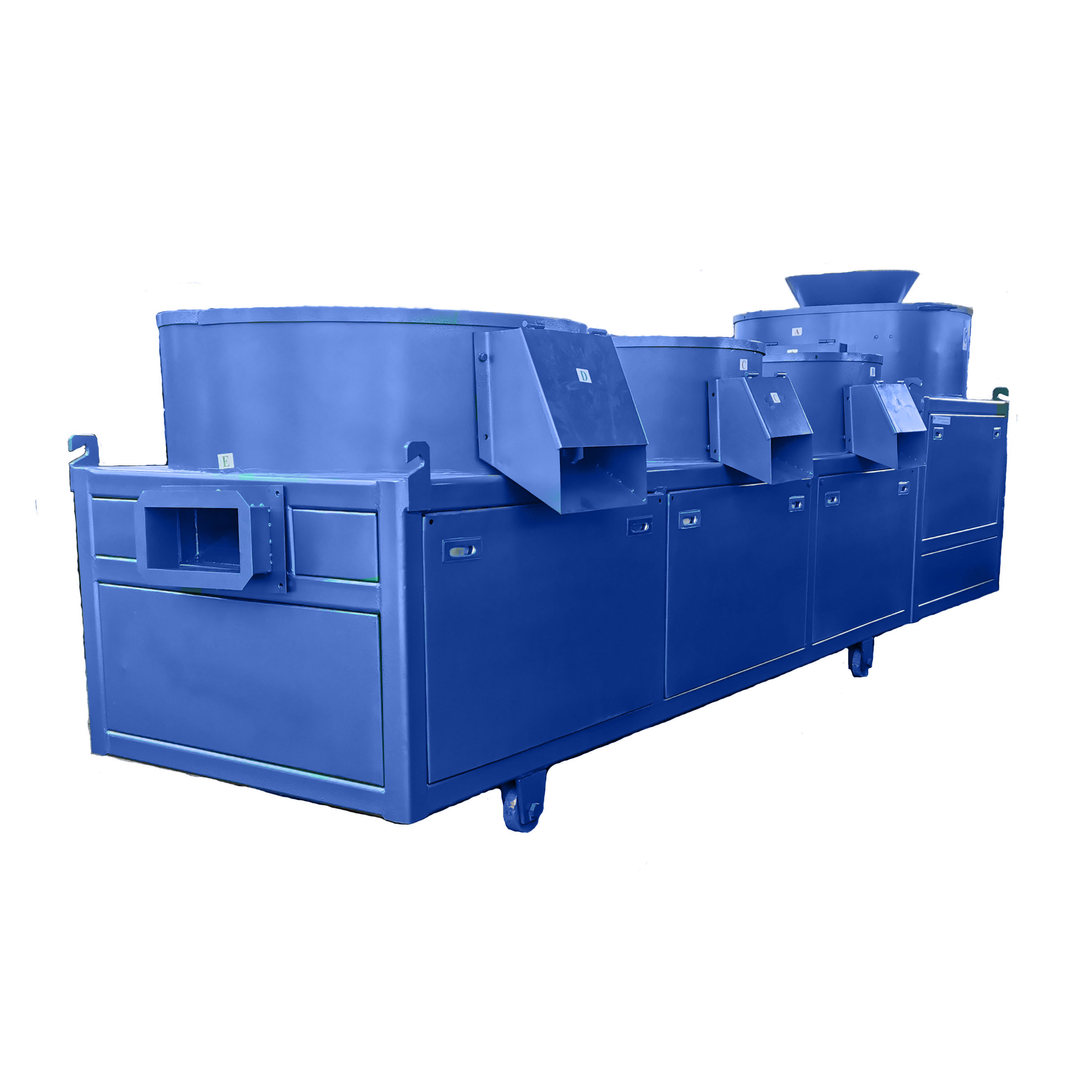

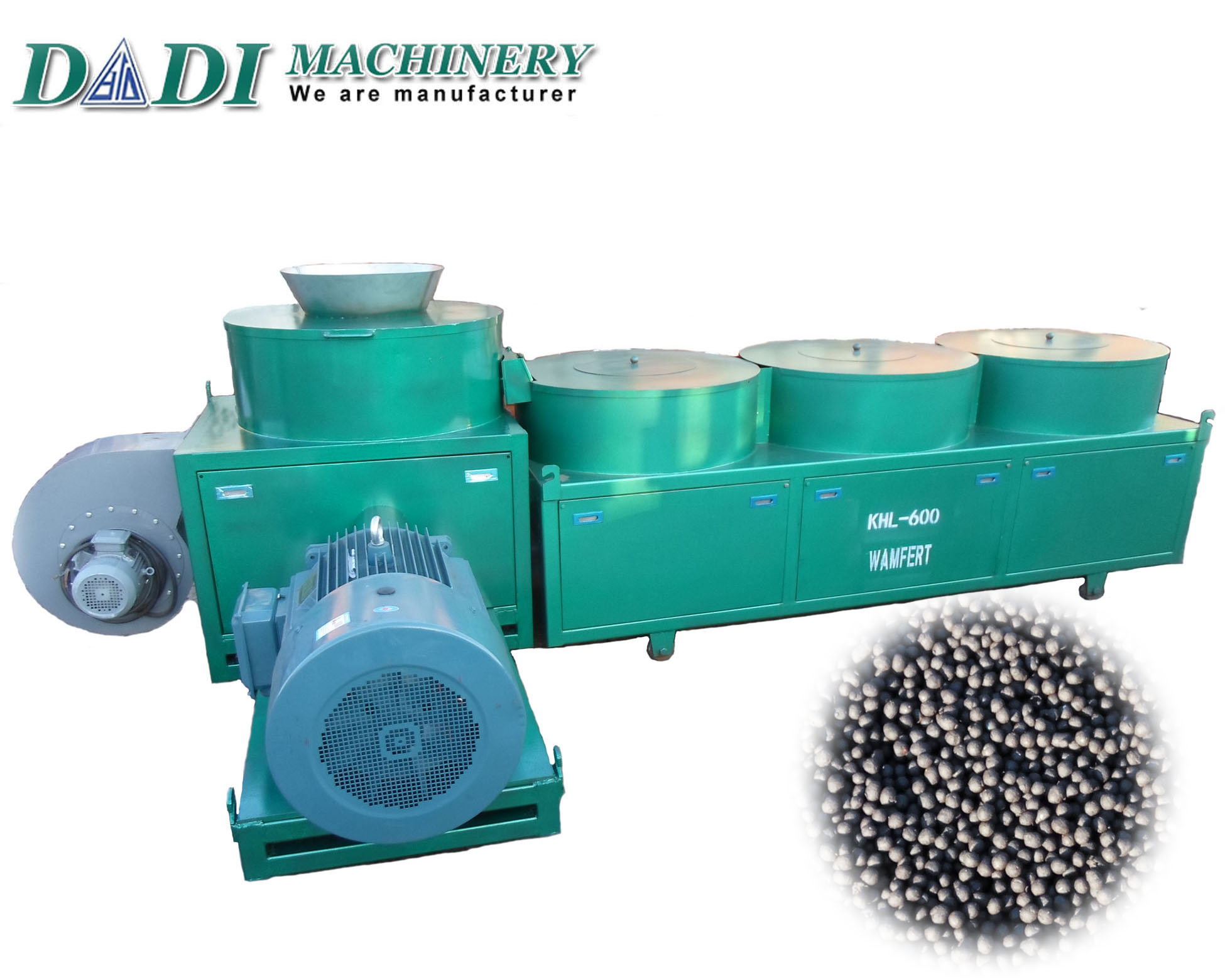

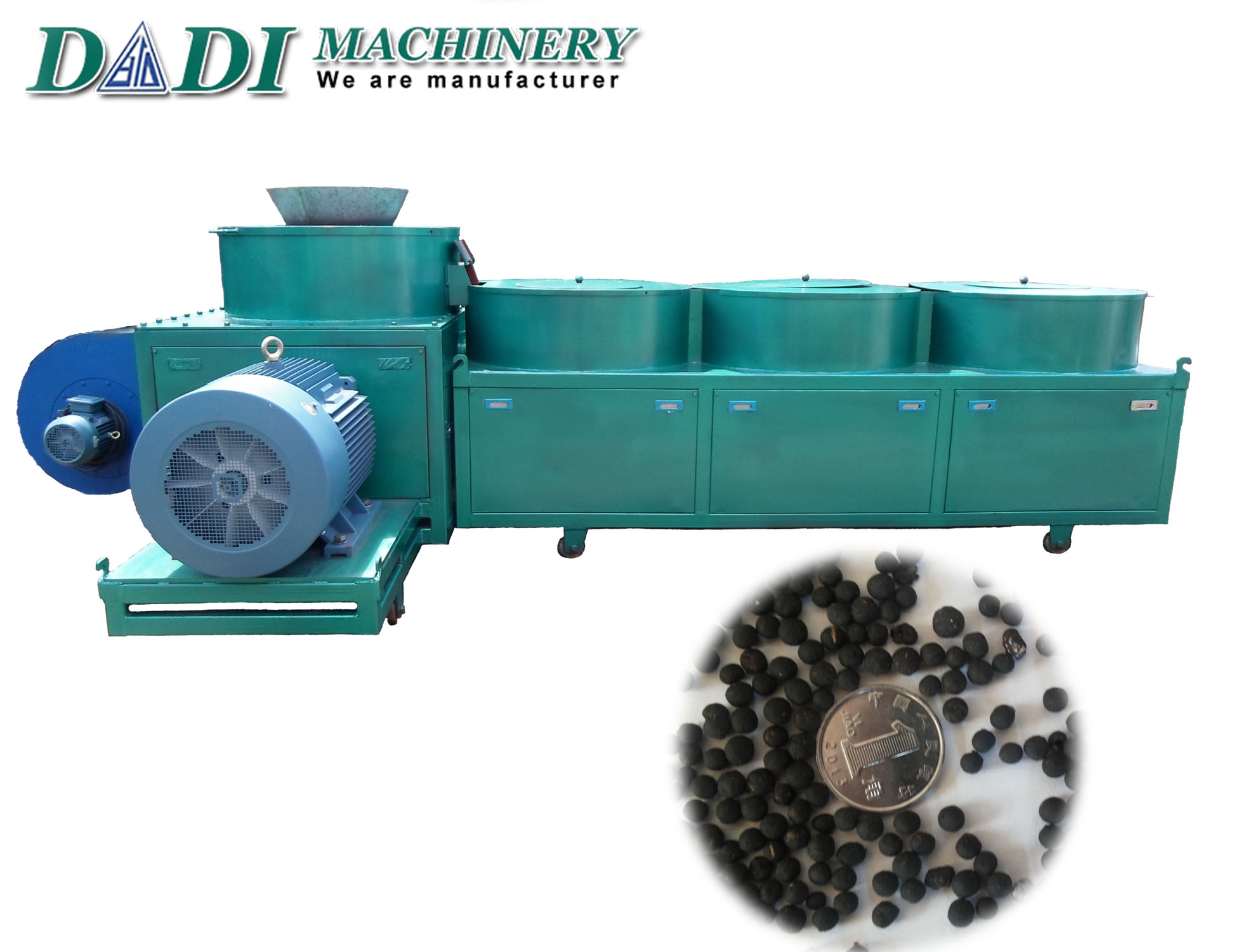

Ring Die Type Organic Fertilizer Granulator Machine is a new improved granulation machine that specializes in making organic fertilizer granules. Input raw materials moisture can be 30-40%, there is no dust come out in the enclosure space granulation processing as well as the blower design which can make the surface of granule dry to avoid the granules stick together. Extrusion processing makes sure the pellets’ strong enough and uniform in shape. Polisher parts turn the cylinder pellets into a ball shape. The good production rate is more than 90% and the finished product is ball granule. Its granule is uniform and has good solubility and high purity and quality.
Model :
KHL-500
Capacity: T/h
2-2.5
Input moisture content required: %
30-35
Moisture reduce after granulation : %
3
Input material particle size required : mm
0.3-0.5
Rate of finished products:%
＞90
Voltage : V
380 (optional)
Granules size: mm
3.5-5.5
Power: KW
56.5
Total weight:Kg
3000
Size: m
4.5-1.6-1.4
Organic Fertilizer Granule Machine
Range of Application:
The series of granule machines can make the following raw materials into granules :
1.Agricultural waste: straw, dregs of beans, cotton dregs, rice bran,etc.
2.Animal manure: mixture of poultry litter (PL) and animal waste(AW),such as,Slaughterhouse waste,Fish market,Urine and dung of cow,Pigs,Sheep,Deer,Chicken, Ducks, Geese,Goat,earthworm cast etc.
