Product Detail
Shaft(s) Mixer ( Horizontal fertilizer mixing)
Capacity : (T/H): 0.5-1
materials particle size:(mm): 0.3-0.5
Power: KW: 7.5 KW
Model: DSM-1
Detail

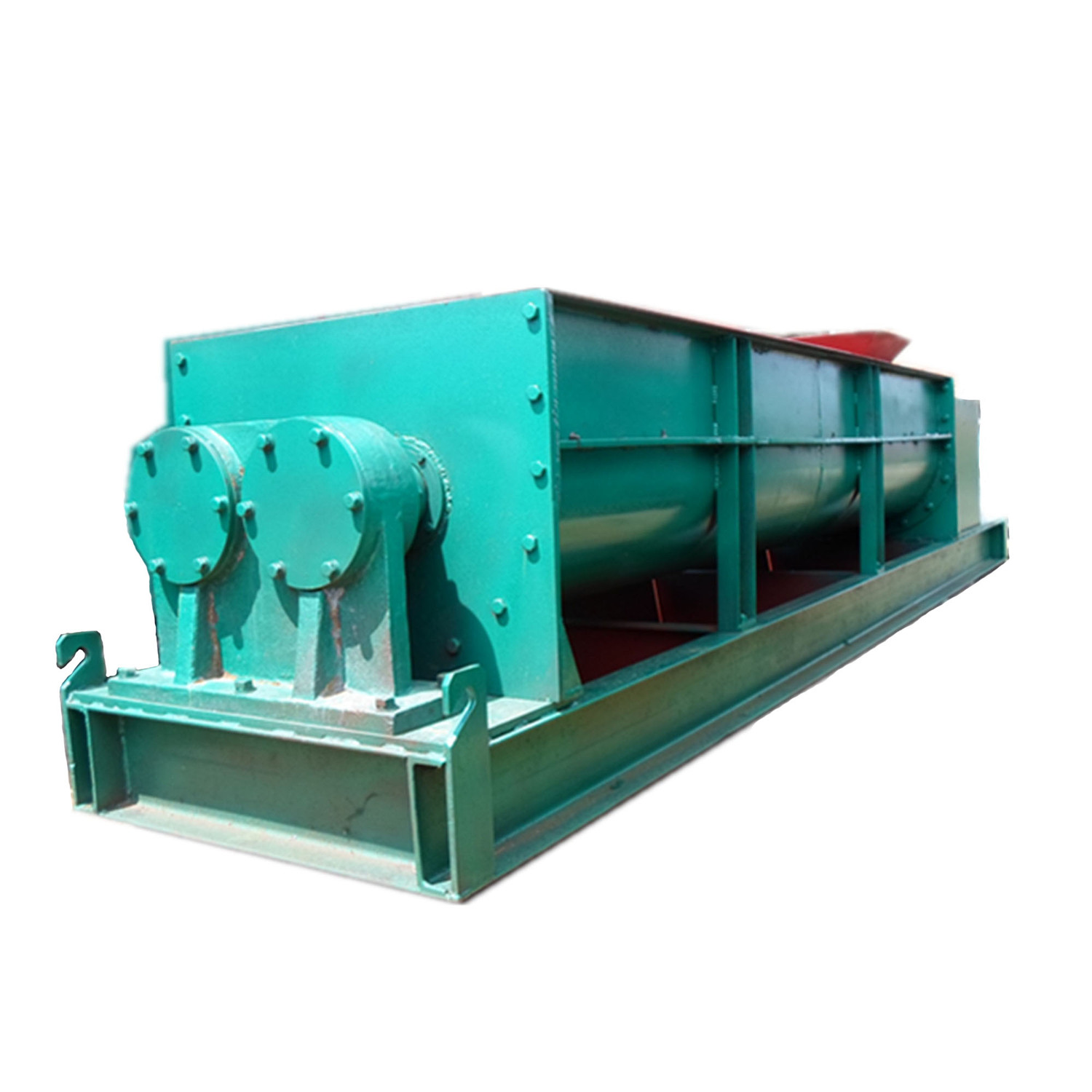

Shaft(s) Mixer ( Horizontal fertilizer mixing)

Shafts mixer (28).jpg

(1),Mixer drum

(2),Machine Frame

(3),Input & Outlet

(4),Shafts ( with Spiral blades )

(5),Driving Device ( Reduction gear & motor )




The raw materials for fertilizer granulation should be mixed evenly after batching according to the formula, so raw material mixer equipment is an essential component in the production of organic fertilizer. As usual the single shaft horizontal mixer used for compound fertilizer (organic materials add chemical / mineral raw materials) , and double shaft mixer used for organic raw materials .

granules from organic fertilizer granulator (7).jpg

Mixer is mainly used to humidify and mix powdery materials in the fertilizer industry. The machine uses shaft(s ) with spiral blades mounted to mix the materials. As the spiral blades have multiple angles, raw materials can be mixed quickly and effectively, regardless of their shape, size and density. The shifts mixer ( blender ) is also suitable for mixing viscous material with about 20%-40% moisture content.

Shafts mixer (60).jpgShafts mixer (66).gif

Model

DSM-1

DSM-2

DSM-2A

DSM-2B

DSM-3

Capacity: t/h

1-1.8

2-2.5

2.5-3.5

3.5-6

6-8

Revolving speed (r/min)

4

4

4

4

4

Powerkw

7.5

15

15

15

22

Size L×W×H (m)

2.5*1.4*0.8

3*1.4*1

3*1.4*1

3.5*1.6*1.1

3.5*1.6*1.1

Weight(Kgs)

1200

2200

2200

2400

2400

VoltageV

380 V -50 HZ- 3 phase it can be change under your need )
